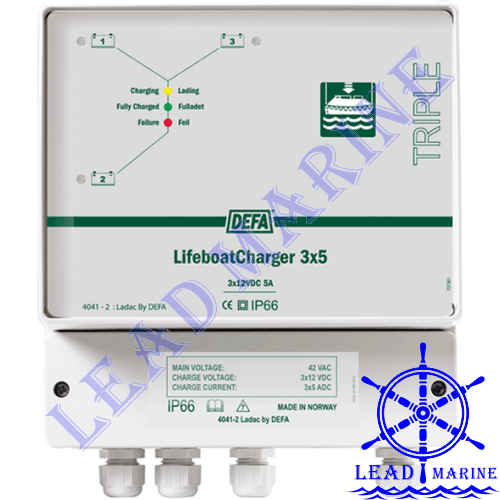

DEFA Lifeboat Charger 3x5 Description
Product Name:
DEFA Lifeboat Charger 3x5Model No.:
4041-2
3x5A 4041-2 Ladac by DEFA lifeboat charger 700116, a waterproof and compact 3 x 12V trickle charger for permanent fitting in lifeboats with battery sizes up to 3 x 100 Ah, the charger uses no power from the battery when 42VAC is disconnected.
4041-2 Ladac by DEFA Lifeboat Charger 3x5 700116 Technical Specifications
-
Origin:
MADE IN NORWAY -
Market:
China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc... -
Brand:
Ladac by DEFA, 4041LBTRI42 DEFA, TRIPLE -
DEFA Item Number:
700116 1xPG In and 3xPG Out, 700114 1xDEFA In and 3xPG Out -
Yellow Lamp:
Charging, 4041-2 will charge automatically if the voltage of the battery is lower than 13.3V. -
Green Lamp:
Fully Charged, 4041-2 will stop charge automatically if the voltage of the battery is charged to 14.4V. -
Red Lamp:
Failure, 4041-2 red lamp will flash there is open circuit, reverse polarity, short circuit. -
Main Voltage:
42V AC -
Charge Voltage:
3x12V DC -
Charge Current:
3x5A DC -
Protection:
IP66 -
Trouble Shooting:
4041-2 yellow lamp flashing, the battery is aging, change the battery. -
Trouble Shooting:
4041-2 red lamp flashing, the output cable is connected reversibly to the battery. -
Warning:
4041-2 lifeboat battery charger can only be used to make compensating charge for the battery. -
Important Information:
Always disconnect input VAC (mains) before connecting or disconnecting batteries. -
Working Temperature:
-25℃ ~ 40℃ -
HS Code:
8504409999 -
Dimension:
245 x 220 x 110 mm -
Weight:
9.3Kg -
Lead Time:
Stock Available. -
Class Certificate:
ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS -
For More Information:
Please feel free to contact with Lead Marine.
