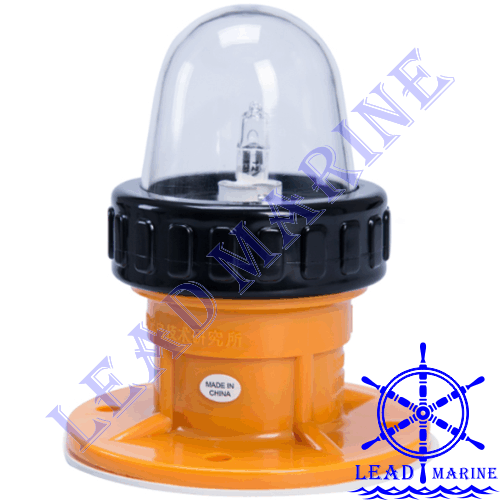

BSW9812 Position Indicating Light Description

SHANGHAI YUQIN INSTITUTE OF PHOTO ELECTRONIC TECHNIQUE BSW9812 position indicating light for lifeboat and life raft, a specified flashing light provides comprehensive and effective light signal for lifeboat and small boat, it can indicate location and provide an accurate and striking mark for timely rescue.

YUQIN INSTITUTE OF PHOTO ELECTRONIC TECHNIQUE SHA BSW9812 Position Indicating Light Technical Specifications

  • Origin:

  • Market:

    China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc...
  • Brand:

    YUQIN, goldlight, STROBE LIGHT
  • Voltage and Power:

    DC12V, 13W
  • Frequency of Flash:

    50 ~ 70 flashes/min
  • Luminous Intensity:

    ≥4.3cd in all directions of the upper hemisphere.
  • Goldlight Standard:

    Regulations 4,7,22,26,32 and 34, chapter III of international convention for the safety of life at sea 1974.
  • Goldlight Standard:

    Chapter IV of MSC.48(66) International Life-saving Appliance Code.
  • Goldlight Standard:

    Testing of Life-saving appliances MSC.81(70), MSC.200(80), MSC.226(82), MSC.323(89).
  • Light Application Method:

    Connect the lamp with 12V DC voltage power supply equipment in the lifeboat.
  • Install:

    The BSW9812 should be installed on the hull of the high end or eye catching place for indicate position.
  • Warning:

    BSW9812 position indicating light is sealed, do not open it and replacement bulb by yourself.
  • HS Code:

  • Dimension:

    100 x 100 x 120 mm
  • Weight:

  • Lead Time:

    Stock Available.
  • Class Certificate:

    ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
