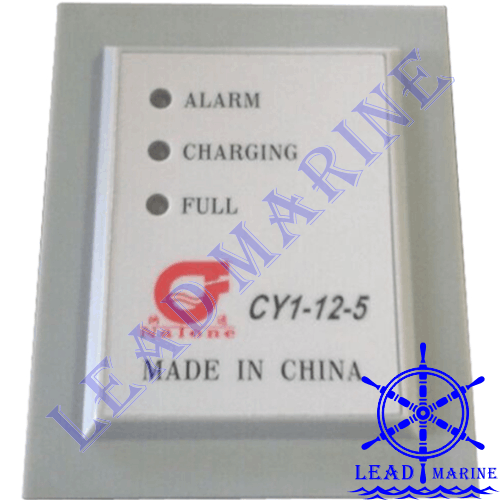

CY1-12-5 Battery Charger Description

ZIBO TORCH INDUSTRY & TRADE CY1-12-5 lifeboat battery charger is suitable for charging the battery which capacity is lower than 200AH, this battery charger is widely used on the lifeboat or ship.

ZIBO TORCH CY1-12-5 LIFEBOAT BATTERY CHARGER Technical Specifications

  • Origin:

    MADE IN CHINA
  • Market:

    China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc...
  • Brand:

    NATONE
  • Connection Procedures 1:

    Connect the red line of the output cable to the positive of the battery, then blue to the negative.
  • Connection Procedures 2:

    Connect the input cable to the AC power source.
  • Green Lamp:

    CHARGING, CY1-12-5 will charge automatically if the voltage of the battery is lower than 12.8V.
  • Yellow Lamp:

    FULL, CY1-12-5 will stop charge automatically if the voltage of the battery is charged to 14.5V.
  • Red Lamp:

    ALARM, CY1-12-5 red lamp will flash there is open circuit, reverse polarity, short circuit.
  • Input Voltage:

    42V AC
  • Output Voltage:

    1x14.5V DC
  • Output Current:

    1x5A DC
  • Protection:

    IP56
  • Trouble Shooting:

    CY1-12-5 yellow lamp flashing, the voltage of the battery is high, discharge the battery.
  • Trouble Shooting:

    CY1-12-5 red lamp flashing, connect the cable correctly.
  • Trouble Shooting:

    CY1-12-5 charge time is too short, change the battery.
  • Warning:

    CY1-12-5 lifeboat battery charger can only be used to make compensating charge for the battery.
  • Important Information:

    Always disconnect input VAC (mains) before connecting or disconnecting batteries.
  • Working Temperature:

    -25℃ ~ 55℃
  • HS Code:

    8504409999
  • Dimension:

    160 x 120 x 85 mm
  • Weight:

    3Kg
  • Lead Time:

    Stock Available.
  • Class Certificate:

    ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
