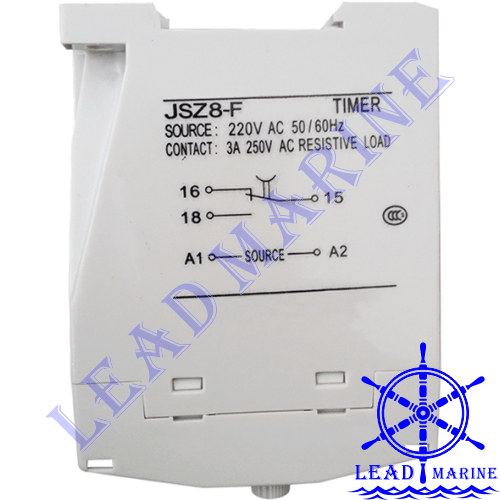

JSZ8-15F MIND TIMER RELAY Description

MIND JSZ8-15F timer relay is widely used for timing control units of electric auto control system on ships, JSZ8 electrical time delay relay can make and break circuits according to setting time.

MIND JSZ8-15F TIMER RELAY Technical Specifications

  • Origin:

    Made In China
  • Market:

    China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc...
  • Features:

    small size, high timing accuracy, high reliability, long life, etc...
  • JSZ8-F Functions:

    off delay, timed SPDT
  • Option Contact Type:

    JSZ8-A, JSZ8-G, JSZ8-C, JSZ8-F, JSZ8-Y, JSZ8-X
  • Option Timing Type:

    JSZ8-11F, JSZ8-13F, JSZ8-14F, JSZ8-15F, JSZ8-16F
  • Contact:

    3A 250V AC resistive load, 220V 0.5A, 24V 3A, 24V 0.5A
  • Source:

    AC24V, AC110V, AC220V, DC24V, DC48V
  • Variety of Versions:

    A: on delay, G: interval timing, C: with inst. contact, F: off delay, Y: timing for star-delta motor starters
  • Timing Range:

    11: 0.1~1 s, 13: 0.5~5 s, 14: 1~10 s, 15: 2.5~30 s, 16: 5~60 s
  • Changing the Timing:

    JSZ8 timer have 2 different timing range s/min, is easily selected by a changeover switch.
  • Reset Time:

    60ms
  • HS Code:

    8536490090
  • Dimension:

    105 x 75 x 22.5 mm
  • Weight:

    0.5Kg
  • Lead Time:

    Stock Available.
  • Class Certificate:

    ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
