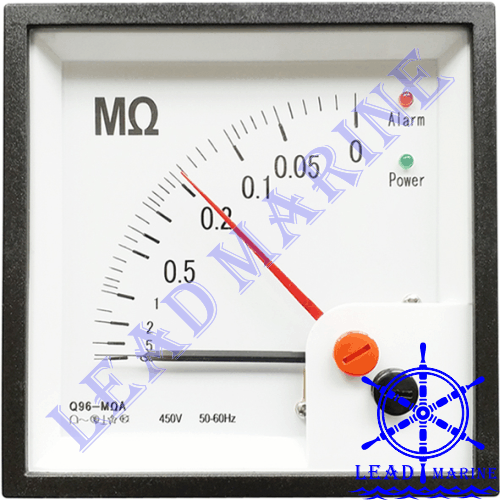

Q96-M Insulation Monitor Description

SHANGHAI ZI YI MARINE INSTRUMENTATION CMA SFAIF Q96-MΩA AC insulation monitor is widely used on the ships to monitoring the insulation resistance at the AC net work system below 750V.

SHANGHAI ZI YI INSTRUMENTATION SFAIF CMA Q96-MΩA Insulation Monitor Technical Specifications

  • Origin:

    Made In China
  • Market:

    China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc...
  • Voltage:

    100V, 220V, 380V, 400V, 450V

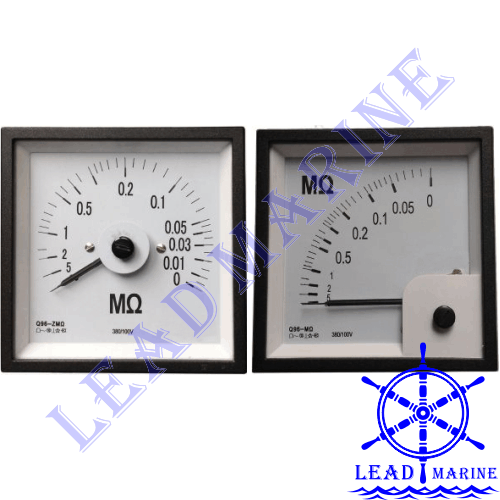

  • Related Type:

    Q72-MΩ, Q96-MΩ, Q144-MΩ, Q72-ZMΩ, Q96-ZMΩ, Q144-ZMΩ
  • Type With Alarm:

    Q72-MΩA, Q96-MΩA, Q144-MΩA, Q72-ZMΩA, Q96-ZMΩA, Q144-ZMΩA
  • Scale Develop Angle:

    90°, 240°
  • Accuracy Class:

  • Measurement Range:

    0~1MΩ, 0~5MΩ, 0~10MΩ
  • Alarm Preset Value:

    10kΩ, 30kΩ, 60kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ
  • Protection:

    IP44, IP56
  • HS Code:

  • Dimension:

    96 x 96 x 93 mm
  • Weight:

  • Lead Time:

    Stock Available.
  • Class Certificate:

    ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
