Home > YITAI INSTRUMENTS > F96D-BM AC Insulation Monitor

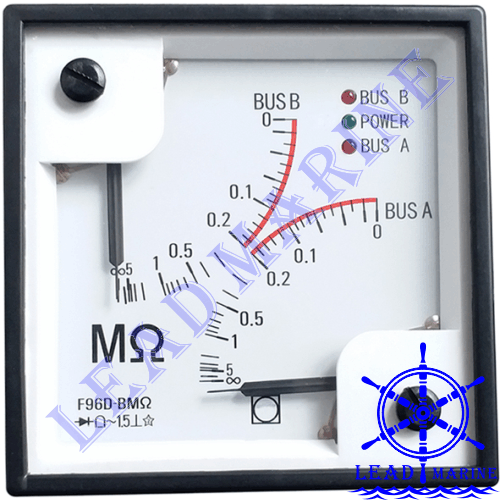

F96D-BM AC Insulation Monitor Description

Shanghai Yi Tai Instruments F96D-BMΩ double insulation monitor can monitoring insulation resistance of double AC networks at same time.

SHANGHAI YITAI INSTRUMENTS F96D-BMΩ Double AC Insulation Monitor Technical Specifications

  • Origin:

    Made In China
  • Market:

    China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc...
  • Double AC Network:

    BUS A, BUS B
  • Voltage:

    100V, 220V, 380V, 440V
  • Related Type:

  • Spare Parts:

    Spare parts like external converter YT-DBMΩ is available.
  • Accuracy Class:

  • Measurement Range:

    0~1MΩ, 0~5MΩ, 0~10MΩ
  • Alarm Preset Value:

    10kΩ, 30kΩ, 60kΩ, 100kΩ, 200kΩ, 500kΩ, 1MΩ
  • Protection:

    IP44, IP56
  • HS Code:

  • Dimension:

    96 x 96 x 130 mm
  • Weight:

  • Lead Time:

    Stock Available.
  • Class Certificate:

    ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
