Home > ZHENJIANG TRI ISLANDS > SD512-2 Battery Charger

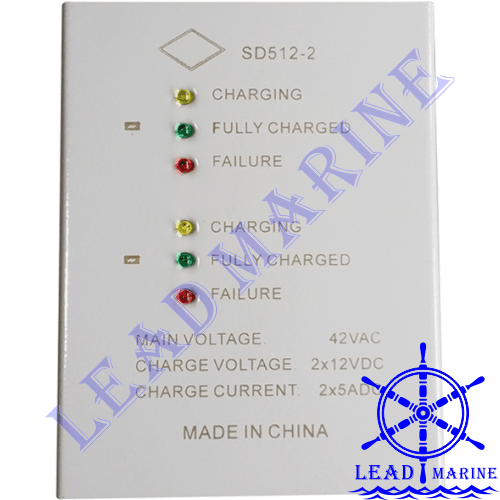

SD512-2 Battery Charger Description

Zhenjiang tri-islands marine instruments and equipment SD512-2 battery charger automatically charges the battery with self protection.

ZHENJIANG TRI-ISLANDS MARINE INSTRUMENTS AND EQUIPMENT SD512-2 BATTERY CHARGER Technical Specifications

  • Origin:

    MADE IN CHINA
  • Market:

    China, Singapore, Indonesia, Malaysia, Europe, Korea, U.A.E, India, etc...
  • Brand:

    SANDAO, TRI-ISLANDS
  • Related Model:

    SD512-42, SD512-2, SD512-3
  • Yellow Lamp:

    charging, SD512-2 will charge automatically if the voltage of the battery is lower than 13.3V.
  • Green Lamp:

    fully charged, SD512-2 will stop charge automatically if the voltage of the battery is charged to 14.4V.
  • Red Lamp:

    failure, SD512-2 red lamp will flash there is open circuit, reverse polarity, short circuit.
  • Main Voltage:

    42VAC
  • Charge Voltage:

    2x12VDC
  • Charge Current:

    2x5ADC
  • Protection:

    IP56
  • Trouble Shooting:

    SD512-2 red light is on, no battery connection, wrong polarity, short circuited battery cables.
  • Warning:

    Always disconnect 42VAC before connecting or disconnecting batteries.
  • Working Temperature:

    -25℃ ~ 40℃
  • HS Code:

    8504409999
  • Dimension:

    170 x 165 x 70 mm
  • Weight:

    4.5Kg
  • Lead Time:

    Stock Available.
  • Class Certificate:

    ABS , BV , CCS , DNV , GL , LR , KR , NK , RINA , RS
  • For More Information:

    Please feel free to contact with Lead Marine.
